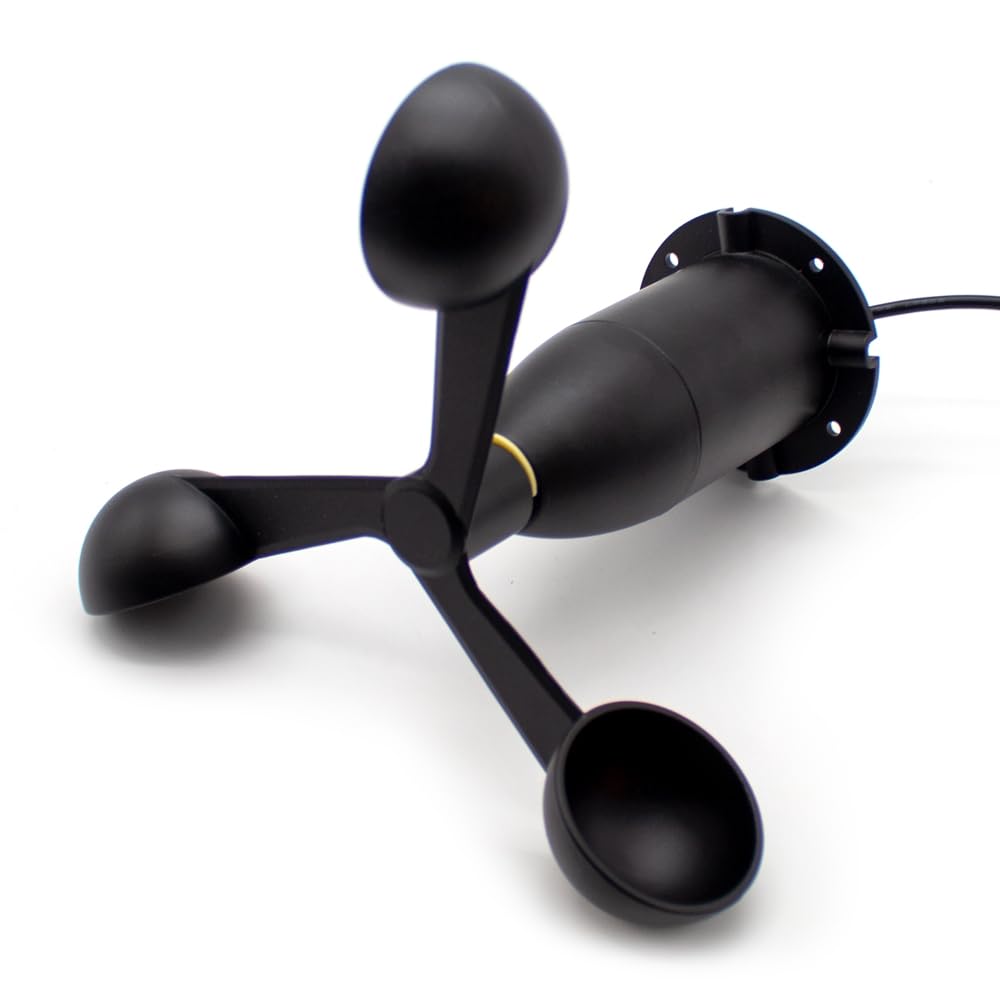

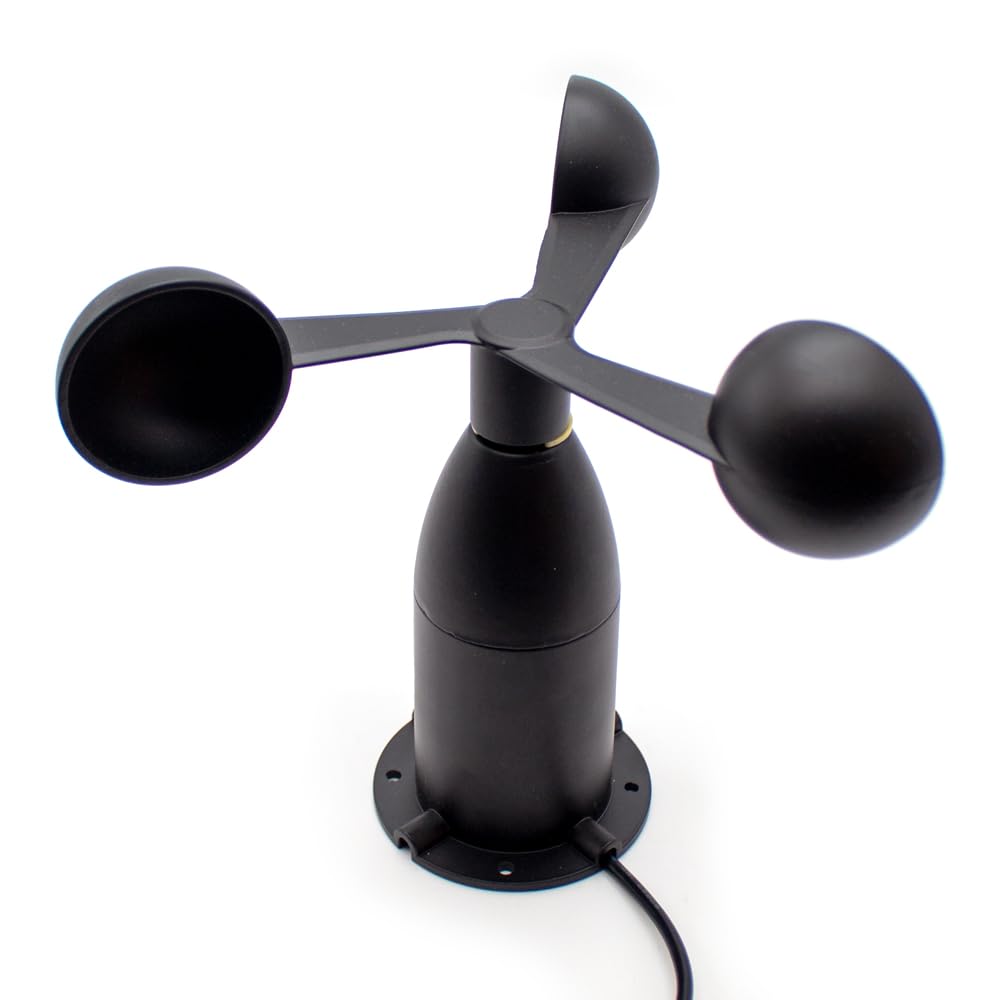

Ship Crane Tower Wind Speed Monitor Wind Speed and Direction Transmitter Sensor RS485/4-20mA/0-5V/0-10V/Pulse Signal (0-10V)

Ship Crane Tower Wind Speed Monitor Wind Speed and Direction Transmitter Sensor RS485/4-20mA/0-5V/0-10V/Pulse Signal Features: 1. Moisture-proof and corrosion-resistant shell 2. High precision measurement 3. Wide range of measuring range 4. Weather dedicated Specification: RS485: Power supply: 10-30VDC Maximum power consumption: 0.4W Wind speed accuracy: ± (0.2 + 0.03V) m / s (V means wind speed) Measuring range: 0-30m/s Resolution: 0.1m/s Working temperature: -20 ° C ~ 60 ° C Starting wind speed: ≤0.2m/s Response time: 0.5s Output signal: RS485 (Modbus-RTU protocol) Communication parameters: default device address 1, baud rate 4800 Analog signal: Power supply: 10-30VDC (0-10V recommended 24V power supply) Maximum power consumption: 1.2W Wind speed accuracy: ± (0.2 + 0.03V) m / s (V means wind speed) Measuring range: 0-30m/s Resolution: 0.1m/s Working temperature: -20 ° C ~ 60 ° C Starting wind speed: ≤0.2m/s Response time: 0.5s Output signal: 4-20mA, 0-5V, 0-10V Load capacity: output resistance ≤250Ω (voltage output), ≤600Ω (current output) Pulse signal: Power supply: 5-30VDC Wind speed accuracy: ± (0.2 + 0.03V) m / s (V means wind speed) Measuring range: 0-60m/s Resolution: 0.125m / s (1m / s = 8 pulses) Starting wind speed: ≤0.2m/s Response time: 0.5s Output signal: pulse output (PNP/NPN/NPNR) Load capacity: ≥100mA (PNP/NPN) Package included: 1 x Wind Speed Monitor

• Moisture-proof and corrosion-resistant shell
• High precision measurement
• Wide range of measuring range
• Weather dedicated
